Tray Feeder
Home / Products for automation / Tray Feeder
Automated removal/loading of parts located on trays to and from production process.

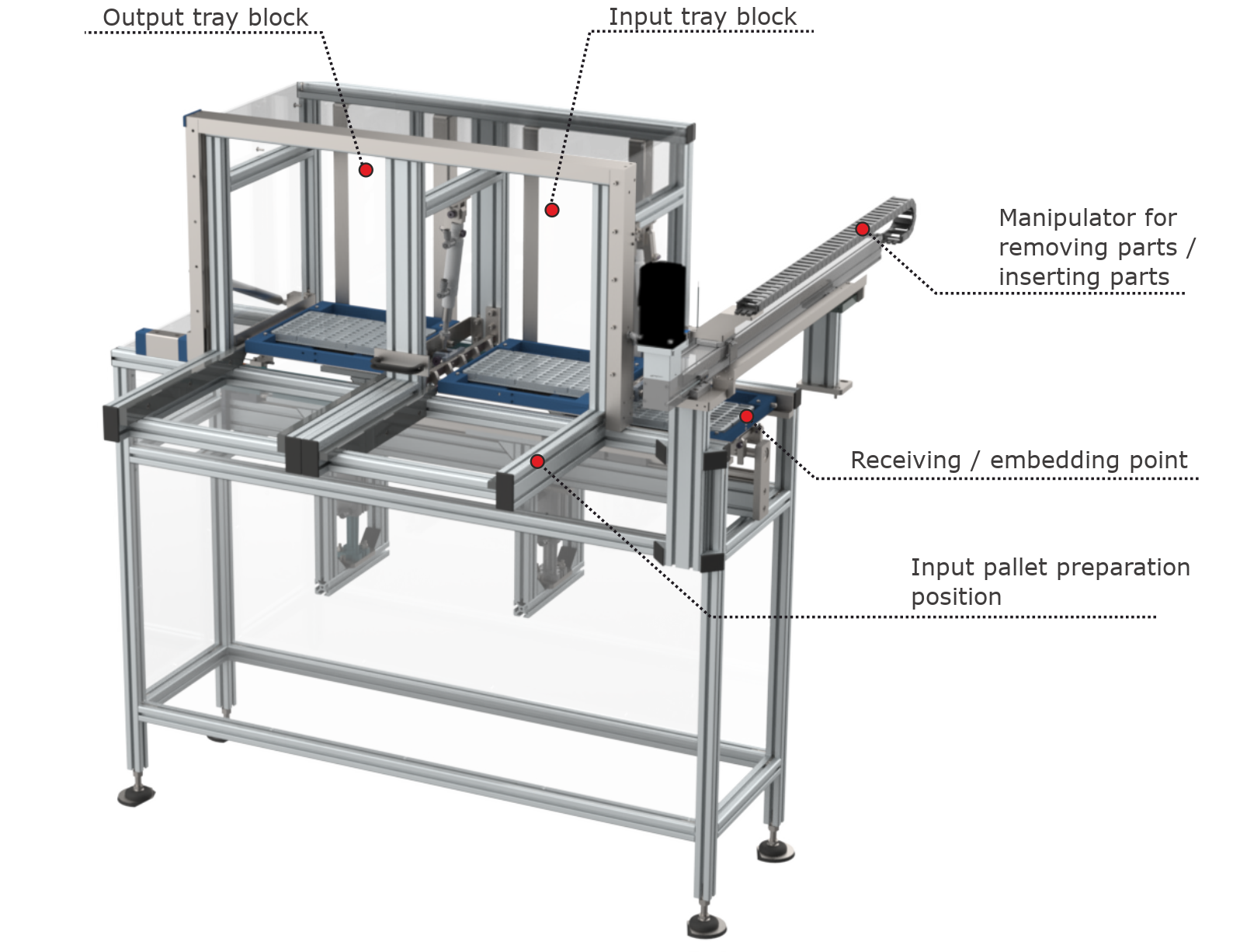

Tray feeder consists of preparation point, point for feeding of entering tray block and point for releasing of exiting tray block, tray displacement to the point of release/feeding, precise positioning of individual series on tray, empty tray displacement to exiting block.
Tray feeder may be equipped with a manipulator for part release/feeding to/from production process.
Characteristics
— The operator simply loads trays in the frame for right fixation, grip and tray orientation
— Precise and rapid tray positioning for option of parts release/feeding by tentacle

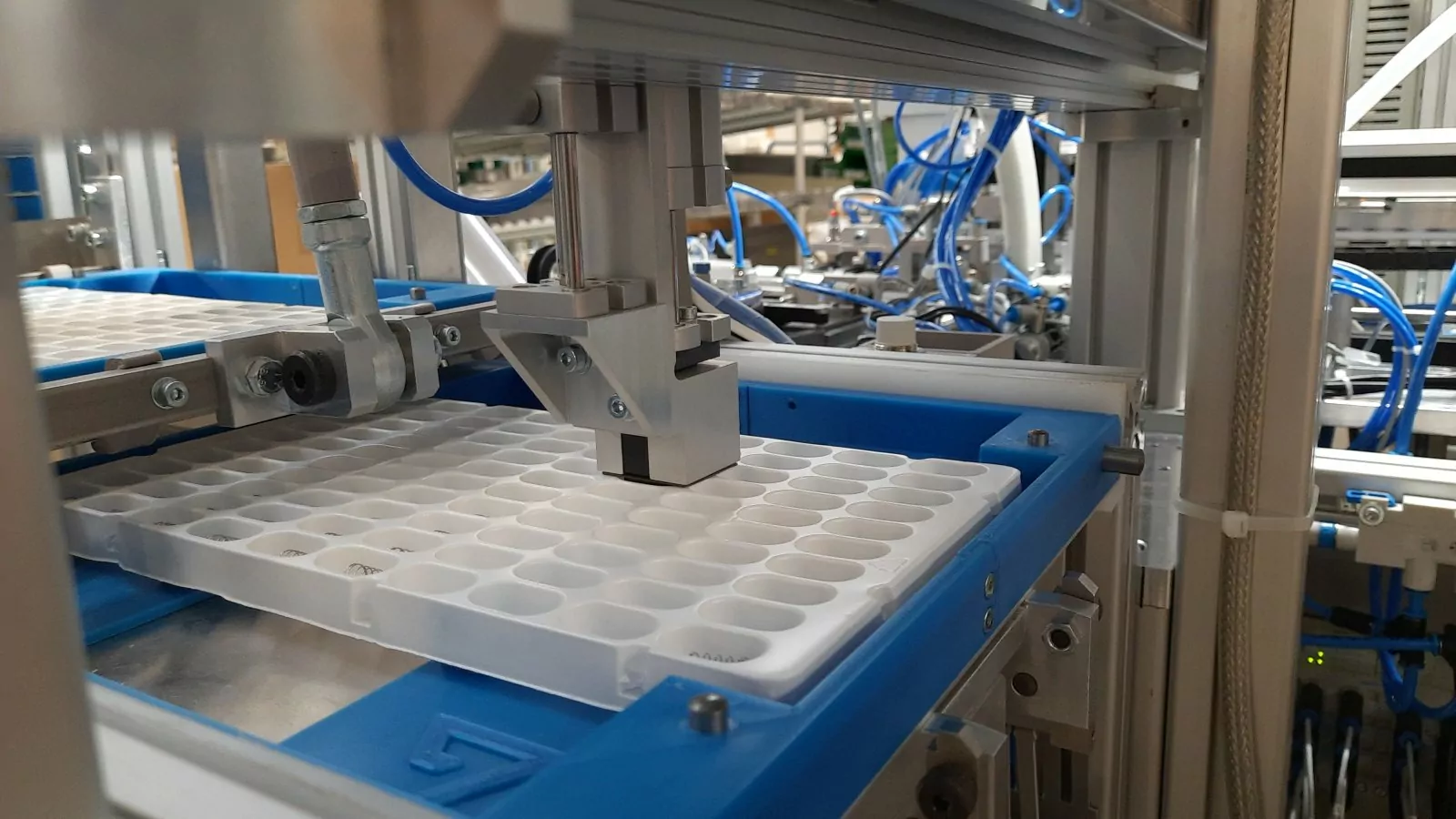

— Parts release by tentacle placed on the manipulator
— Option to deliver equipment including tentacle with manipulator
— Tray condition monitoring at the enter and exit
— Tray type monitoring and tray orientation
— Tray exchange speed less than 6 seconds
— Careful tray handling
— Robust construction
— Operator access may be located from right or left side
— Control system
Product functions
1
Feeding parts placed on the tray.
2

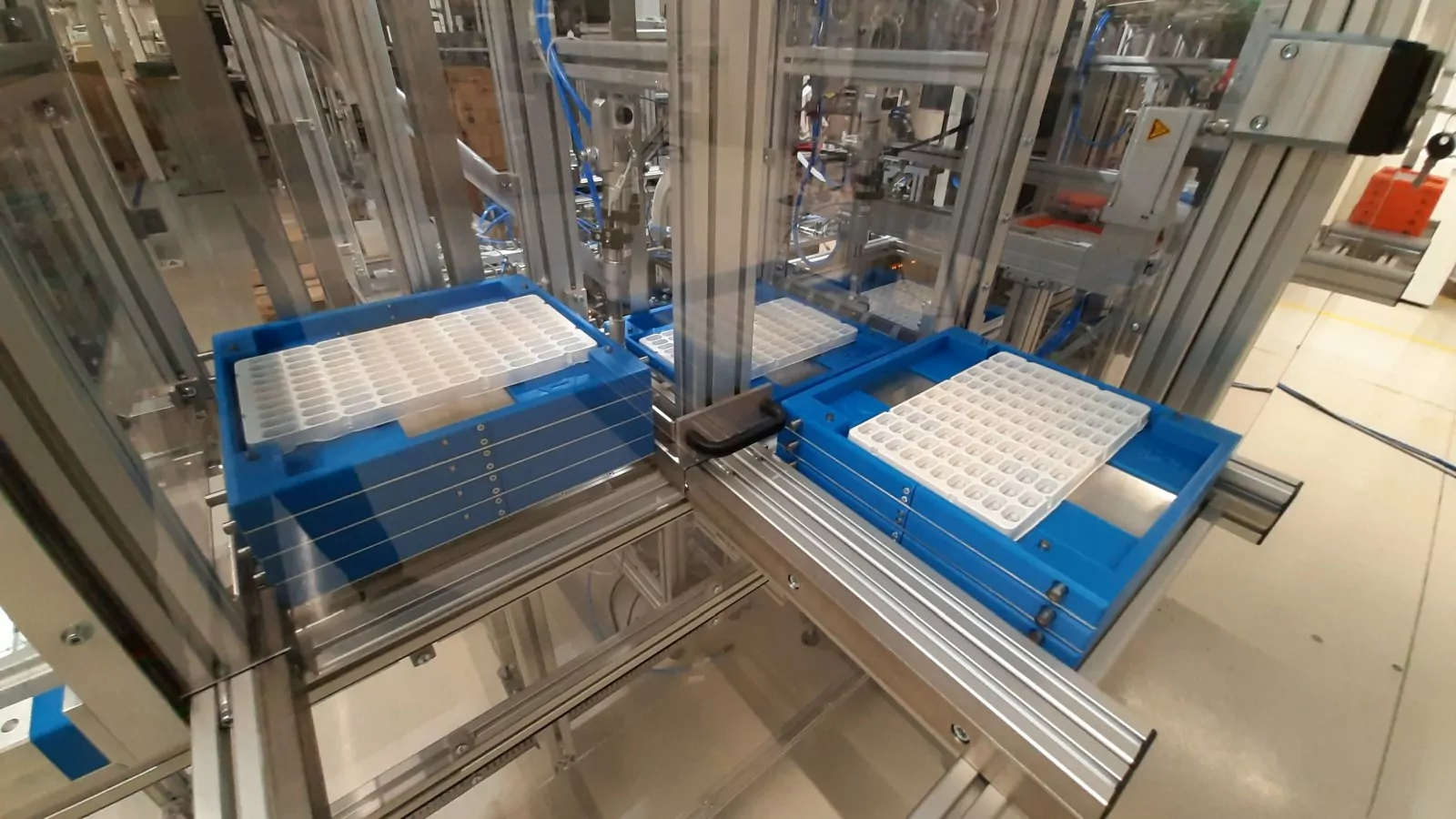

Tray cycle – at the entering point a stack of full/empty tray is located and at the exit of device is stack of empty/full trays.
3
Stock size up to 20 trays – depending on the tray weight.
4
Device is suitable for trays with dimensions of up to 500×500 mm.
5
Simple and safe operation.
6
For entering and exiting parts.
